SunGuard® High Performance

HP Amber 41/29

Add to Compare

Download Brochure Calculate Performance Generate BIM Files Generate specification Find a Supplier Request a sample

Download Brochure Generate BIM Files Generate specification Find a Supplier Request a sample

The triple-threat: solar control, thermal insulation and beautiful colour

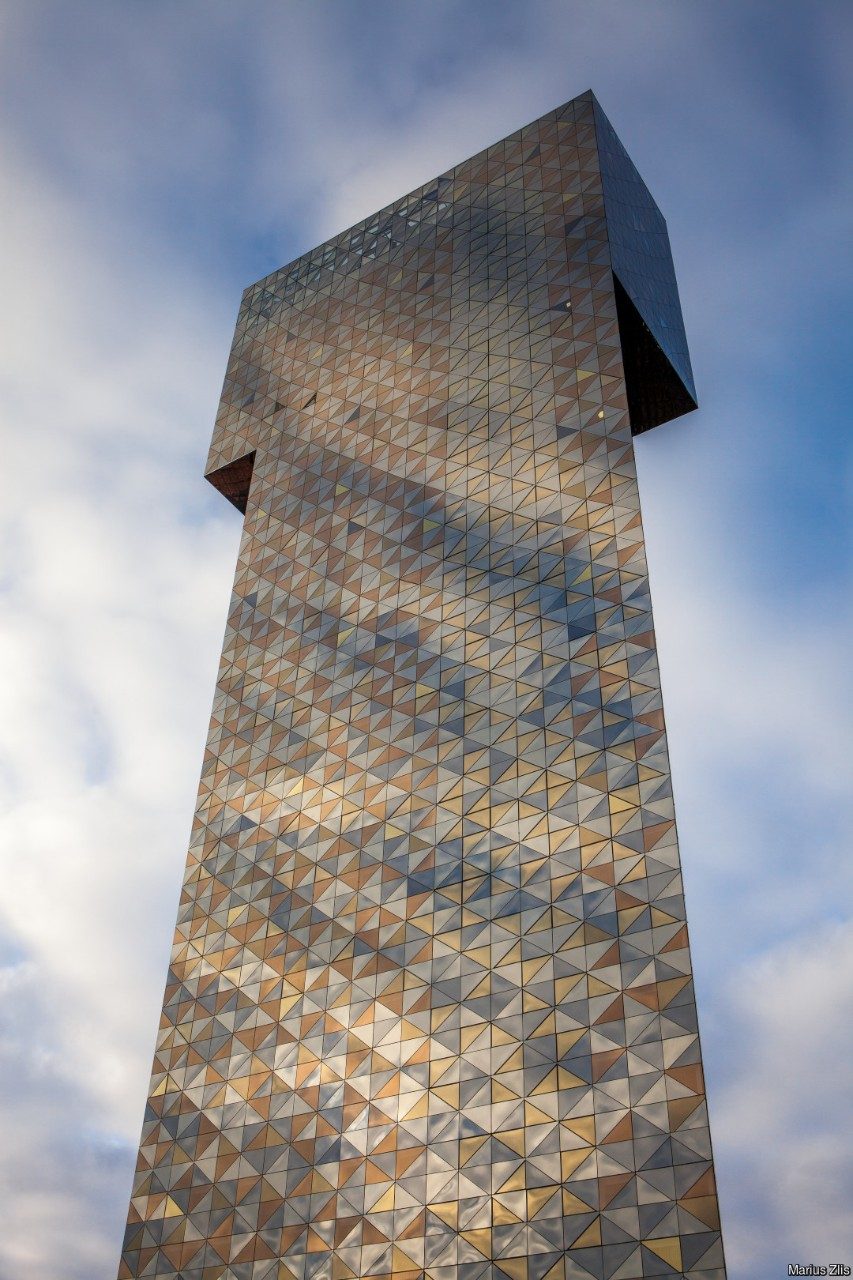

Guardian SunGuard® High Performance (HP) Amber 41/29 is a beautiful, honey-yellow glass that offers excellent energy efficiency for facades, curtain walls, windows and doors. It is an ideal choice for a variety of climates, particularly where air conditioning is used and where energy regulations need to be met or exceeded. It pairs well with other glass, like on Victoria Tower in Stockholm, making HP Amber 41/29 a flexible, unique option for today’s architects.

This product is only available upon request; subject to a minimum order quantity based on product availability. Please contact us for additional information or reach out directly to your Guardian Glass representative.

Product information

Substrates

Guardian ExtraClear 4-12 mm
Guardian NEXA 4-10 mm

Applications

Windows
Facades
Roof window
Curtain walls
Doors

Manufacturing Options

Single Product (Annealed and Heat Treated)
Heat Strengthened
Heat Soaked
Annealed
Laminated
Bent
Tempered

Recommended Coating Positions

Surface 2 (double IGU)
Surface 2 (triple IGU)

Maximum Size

<3210x6000mm

Edge Deletion

Glass Type

Single Silver Coated Glass

Glass Functions

Solar control
Thermal insulation

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Bronze

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian ExtraClear (CE) Glass, 6mm (2-SunGuard® HP Amber 41/29 (CE))

GAP: 10% Air, 90% Argon 16.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

41 %

Reflectance outside (ρv)

25 %

Reflectance inside (ρv)

17 %

General Color Rendering Index (CRI)

Ultraviolet

Transmittance UV (τuv)

33 %

Solar Energy

Solar transmittance (τe)

27 %

Reflectance outside (ρe)

37 %

Reflectance inside (ρe)

34 %

Solar absorptance (αe)

37 %

Solar Factor (g)

29 %

Shading Coefficient (sc)

0.34

Thermal properties

U-Value (Ug)

1.1 W/m²·K

Embodied Co2

[eq. kg/m²] A1-A3

24.96

Triple Glazed

GLASS: Guardian ExtraClear (CE) Glass, 6mm (2-SunGuard® HP Amber 41/29 (CE))

GAP: 10% Air, 90% Argon 14.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm

GAP: 10% Air, 90% Argon 14.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm (5-ClimaGuard® Premium2 (CE))

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

36.8 %

Reflectance outside (ρv)

26.1 %

Reflectance inside (ρv)

19.7 %

General Color Rendering Index (CRI)

86.5

Ultraviolet

Transmittance UV (τuv)

18.3 %

Solar Energy

Solar transmittance (τe)

22.0 %

Reflectance outside (ρe)

37.6 %

Reflectance inside (ρe)

36.8 %

Solar absorptance (αe)

40.4 %

Solar Factor (g)

25.5 %

Shading Coefficient (sc)

0.29

Secondary Heat Transfer (qi)

3.6

Thermal properties

U-Value (Ug)

0.6 W/m²·K

Embodied Co2

[eq. kg/m²] A1-A3

35.67

Performance Calculations

SunGuard® High Performance

HP Amber 41/29

Monolithic Not Laminated Monolithic Laminated Double Glazed Not Laminated Double Outer pane Laminated Double Inner pane Laminated Double Inner and Outer pane Laminated Triple Glazed Not Laminated Triple Outer pane Laminated Triple Inner pane Laminated Triple Inner and Outer pane Laminated

With the performance calculator, you can quickly calculate the performance data that matches your own glazing make-up

1 Pane
2 calculation format
3 Results

1 Outer Pane
2 Inner Pane
3 cavity
4 calculation format
5 Results

1 Outer Pane
2 Middle Pane
3 Inner Pane
4 cavity
5 calculation format
6 Results

Choose a glazing

Monolithic

Not available for this product
Double

Not available for this product
Triple

Not available for this product

Monolithic

Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 1 *

There is only one coating available

Coating on surface 2 *

There is only one coating available

Coating on surface 3 *

There is only one coating available

Coating on surface 4 *

There is only one coating available

Middle Pane

Base glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Coating on surface 3 * Coating on surface 5 *

There is only one coating available

Coating on surface 4 * Coating on surface 6 *

There is only one coating available

Inner Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 5 * Coating on surface 3 * Coating on surface 7 *

There is only one coating available

Coating on surface 6 * Coating on surface 4 * Coating on surface 8 *

There is only one coating available

Coating on surface 7 * Coating on surface 5 * Coating on surface 9 *

There is only one coating available

Coating on surface 8 * Coating on surface 6 * Coating on surface 10 *

There is only one coating available

Choose your calculation format

Standardization *

There is only one calculation standard available

Unit Display *

There is only one unit available for this calculation standard

Results

Calculated Values are in accordance with

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Generate specifications

Generate BIM Objects

Launch another simulation

Need further technical support? Get in contact

There is something wrong with your selection

Performance Data is not currently available for this glass make-up, please launch a new simulation or go to Glass Analytics to configure performance data for your required glass make-up.

Launch another simulation

Submission failed due to a error, please try again

This tool is unavailable on this device

Access our website on a bigger device to be able to use our comparison tool.

HP Amber 41/29

Double Glazed

GLASS: Guardian ExtraClear (CE) Glass, 6mm (2-SunGuard® HP Amber 41/29 (CE))

GAP: 10% Air, 90% Argon 16.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

41 %

Reflectance outside (ρv)

25 %

Reflectance inside (ρv)

17 %

General Color Rendering Index (CRI)

Ultraviolet

Transmittance UV (τuv)

33 %

Solar Energy

Solar transmittance (τe)

27 %

Reflectance outside (ρe)

37 %

Reflectance inside (ρe)

34 %

Solar absorptance (αe)

37 %

Solar Factor (g)

29 %

Shading Coefficient (sc)

0.34

Thermal properties

U-Value (Ug)

1.1 W/m²·K

Embodied Co2

[eq. kg/m²] A1-A3

24.96

HP Amber 41/29

Triple Glazed

GLASS: Guardian ExtraClear (CE) Glass, 6mm (2-SunGuard® HP Amber 41/29 (CE))

GAP: 10% Air, 90% Argon 14.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm

GAP: 10% Air, 90% Argon 14.0mm

GLASS: Guardian ExtraClear (CE) Glass, 4mm (5-ClimaGuard® Premium2 (CE))

Calculated Values are in accordance with EN 410:2011 / EN 673:2011

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

36.8 %

Reflectance outside (ρv)

26.1 %

Reflectance inside (ρv)

19.7 %

General Color Rendering Index (CRI)

86.5

Ultraviolet

Transmittance UV (τuv)

18.3 %

Solar Energy

Solar transmittance (τe)

22.0 %

Reflectance outside (ρe)

37.6 %

Reflectance inside (ρe)

36.8 %

Solar absorptance (αe)

40.4 %

Solar Factor (g)

25.5 %

Shading Coefficient (sc)

0.29

Secondary Heat Transfer (qi)

3.6

Thermal properties

U-Value (Ug)

0.6 W/m²·K

Embodied Co2

[eq. kg/m²] A1-A3

35.67
