Enjoy views through your glass in comfort
What is vision glass?
Vision glass is any type of glass that you can see through. It is the opposite of spandrel glass. Spandrels are opaque glass panels located between areas of vision glass, which are often used to conceal structural building components such as columns, floor slabs, HVAC systems, vents, wiring and plumbing. Designs that call for large areas of glass such as curtain walls or structural glazed facades often include spandrels. Careful selection of the glass for vision areas is necessary to create a comfortable indoor environment for the building occupants.
Where and why do we use vision glass?
Vision glass is used in many different areas of buildings such as glazed facades, curtain walls, roofs and skylights. Vision glass can also be curved or produced in large sizes (up to 6 m panel lengths).
Vision glass provides views of the outside, while allowing more natural daylight into inside spaces to help improve the wellbeing of building occupants. When used in curved glazing or in larger sizes, vision glass can improve sight lines and reduce visual impediments, while helping to dissolve the boundaries of a building to bring occupants up close with the outdoors.
Which type of glass is used for vision glass?
While vision glass helps connect you with the outside and provides more natural daylight, if the glass is not carefully selected to suit the building’s orientation, use and surroundings, interior spaces can quickly become uncomfortable and more energy may be consumed in cooling these spaces and keeping them comfortable.
SunGuard® Double Silver
SunGuard® Double Silver coated solar control glass offers a winning balance of natural light transmission, solar protection and thermal insulation – all combined with a striking visual aesthetic. The glass helps make indoor environments more comfortable and inspiring.
SunGuard® SuperNeutral
SunGuard® SuperNeutral (SN) is our commercial range of double silver coated solar control glass which is, ideal for those seeking high performance with a highly neutral aesthetic. Its super natural light transmission, solar protection and thermal insulation makes it ideal for a wide range of applications.
When selecting vision glass, it is important to consider the following factors in order to create a comfortable inside environment, while benefitting from natural daylight and views of the outside:
Light transmission
When it comes to daylights, Guardian Glass recommends a glass with a maximum light transmission of 50% in regions with strong sunlight. This not only helps the visual comfort of occupants in terms of reduced glare, but also it can also help increase the ratio of vision glass areas in the façade to provide views of the outside.
Guardian Glass BIM (Building Information Modelling) is an online tool that provides a daylight factor recommendation (light transmission and glass-to-wall ratio) based on the building’s location and conditions (i.e. orientation, use, etc.).
Solar control
High performance coated glass helps minimize the amount of heat energy that penetrates a building by blocking a significant amount of this energy, thus helping to prevent interiors from overheating and to limit the use of air conditioning. The solar heat gain coefficient (SHGC) is used to measure the solar energy that transfers indoors through the glass. For architectural projects located in warm climates, a low SHGC is preferred. In an insulating glass unit (IGU), the number #2 surface placement of a solar control coating often facilitates the best performance because it partially reflects out incoming solar energy before it can enter the glazing unit.
Spectral selectivity
Selectivity refers to the ratio between light transmission and solar control. Light coming inside the building, as well as solar control coatings and their placement in the glazing, are essential in supporting the occupant's comfort. The term “spectral selectivity” is used to address the amount of daylight transmission relative to solar energy blockage. Greater spectral selectivity is achieved when more visible light, and less overall solar energy, is transmitted.
Thermal insulation
High performance coated glass can also help reduce the heat transfer associated with interior-versus-exterior air temperature differences, thus lowering the demand on HVAC systems. For example, high performance coated glass with a light transmission of 50% can offer a U-value of 1.3 W/m2K in a double insulating glass unit.
Learn more about how glass can help improve the energy performance of a building.
Want to know more about glass?
Guardian Glass supports you on your journey to become a glass expert. Create an account on our Training Center today to learn more.
Aesthetics
High performance coated glass can provide a wide range of aesthetic options that can meet current trends for both neutral and grey-looking glass. Guardian SunGuard® high performance coatings are applied on clear float glass, which provides a more consistent color across different thicknesses of a product – compared to tinted glass subtrates which can become significantly darker as it thicknes.
Some of our eye-catching vizion glazing projects:

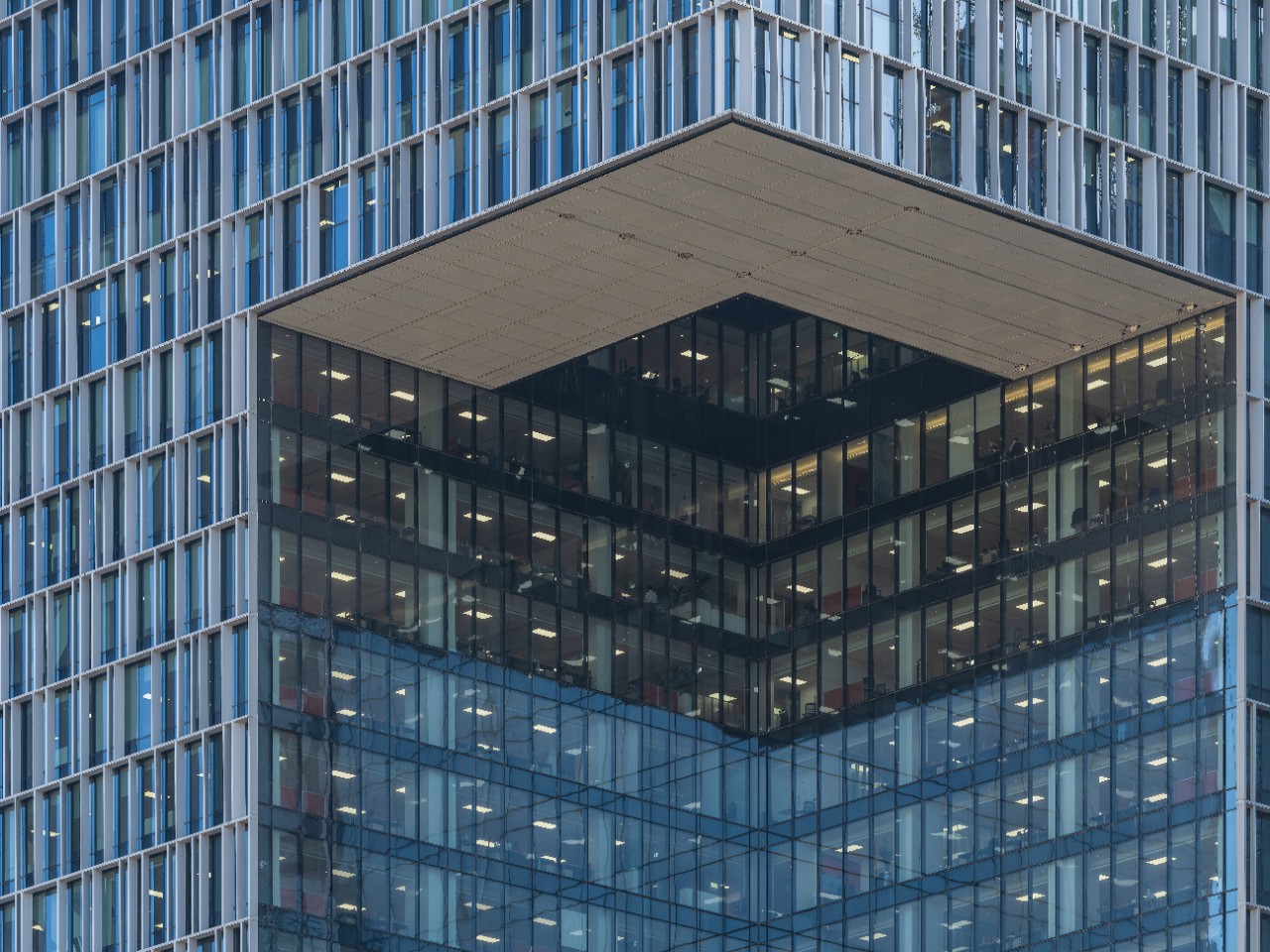

Mashreq Bank Headquarters
United Arab Emirates

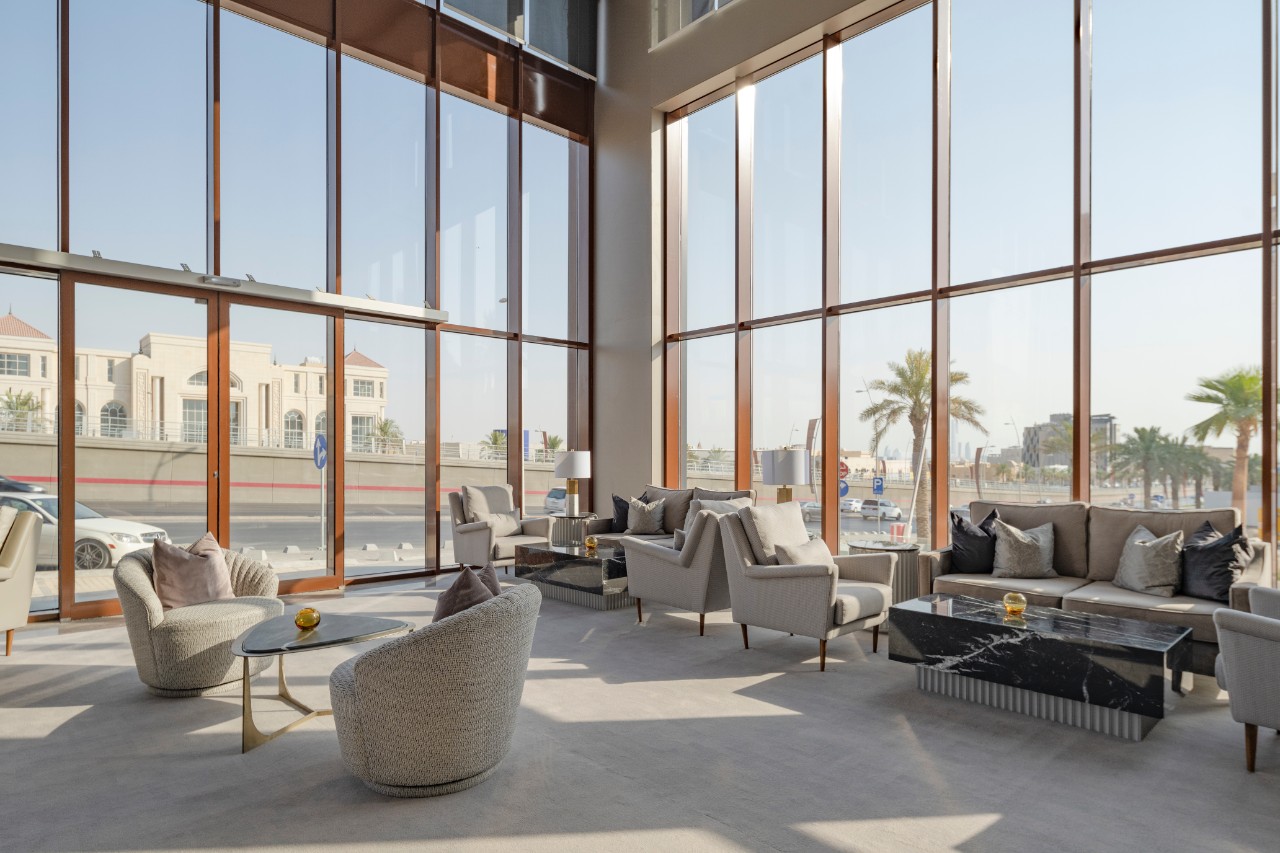

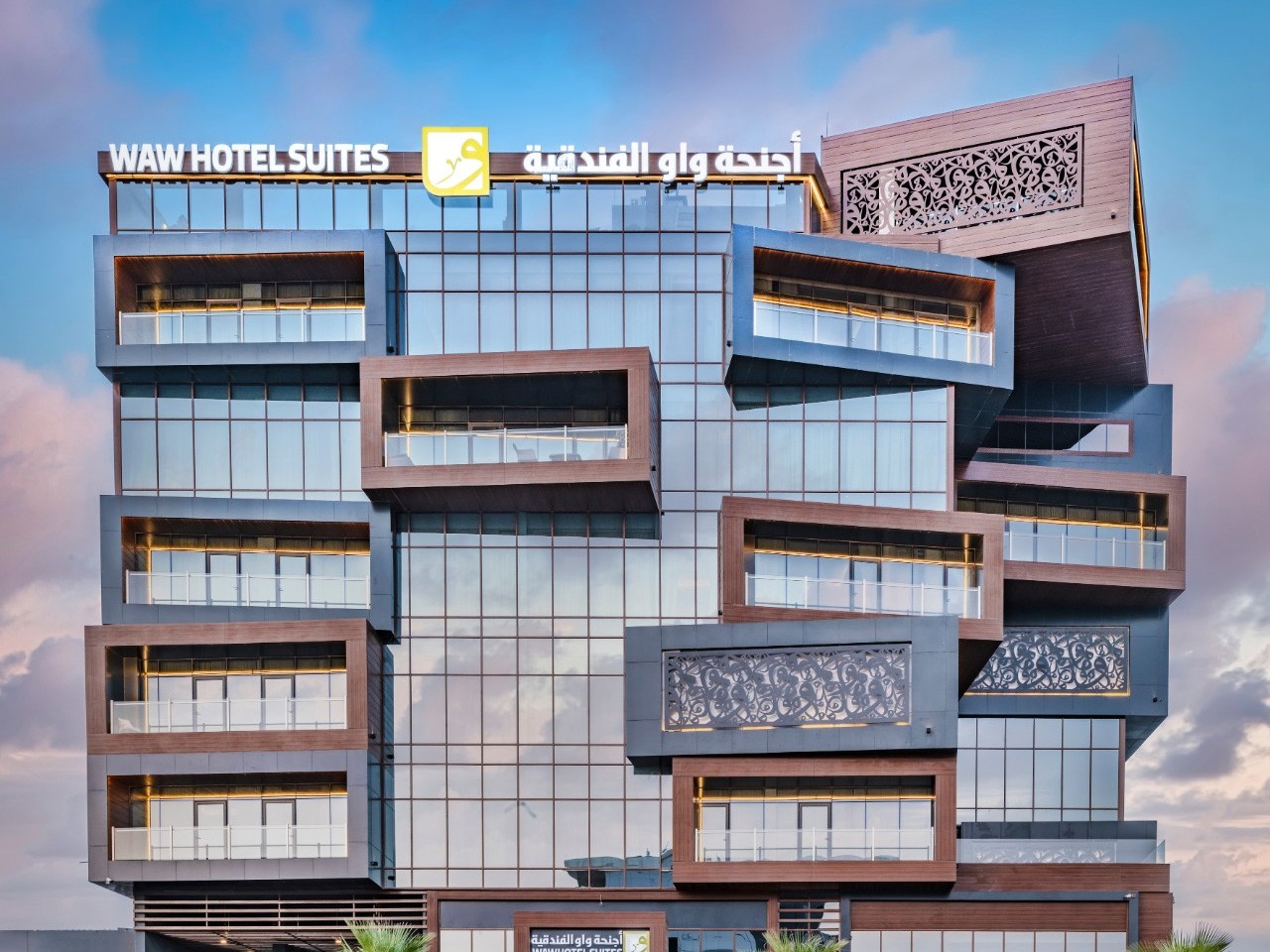

WAW Hotel Riyadh
Saudi Arabia
Want to see more architectural roof glazing projects? Visit our project section on our website.
