You don't have to see it to feel safe

Guardian LamiGlass® comprises two or more panes of glass bonded together using clear PVB interlayers. By combining different variations of glass thicknesses and numbers of interlayers, various performance levels can be achieved, ranging from safety and security to ballistic and blast-resistant. The PVB interlayer absorbs up to 99.5% of UV light, helping to reduce fading and aging in furnishing and artwork. Guardian LamiGlass® can also be combined with Guardian SunGuard® and Guardian ClimaGuard® coated products to add solar control and thermal insulation. Guardian LamiGlass® is used in many applications including curtain walls, facades, windows, overhead glazing, partitions, balustrades, floors, doors, furniture, aquariums, art galleries and museums.

Product information

Substrates

Clear Float 6.38 - 16.38 mm

Applications

Windows
Decorative
Furniture
Facades
Fittings

Manufacturing Options

Annealed
Laminated

Recommended Coating Positions

Not applicable

Maximum Size

<3210x6000mm

Edge Deletion

Glass Type

Laminated

Glass Functions

Safety and security

Fabrication Options

Can be used Monolithic
Can be in an Insulating Glass Unit

Appearance

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Monolthic Laminated Acoustic

Monolthic Laminated Acoustic

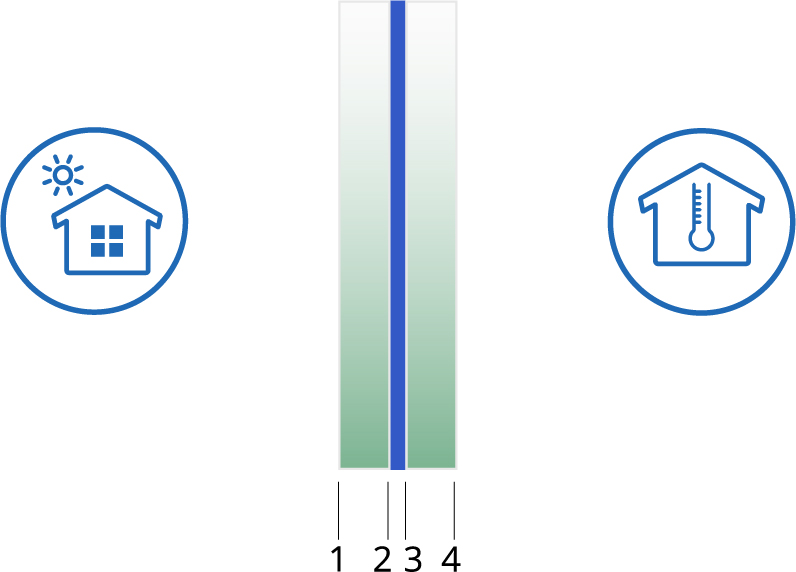

pim/components/structure/pim-mono-laminate

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 5/32" (4mm)

INTERLAYER: 0.015" (0.38mm) Saflex® R Clear PVB (IGDB), 0.381mm

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 5/32" (4mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

88 %

Reflectance outside (ρv)

8 %

Reflectance inside (ρv)

8 %

General Color Rendering Index (CRI)

97.8

Ultraviolet

Transmittance UV (τuv)

1 %

Solar Energy

Solar transmittance (τe)

74 %

Reflectance outside (ρe)

7 %

Reflectance inside (ρe)

7 %

Solar absorptance (αe)

18 %

Solar Heat Gain Coefficient (SHGC)

0.80

Shading Coefficient (sc)

0.92

Thermal properties

Winter night U-Value

5.691 W/m²·K

Summer day U-value

5.167 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.11

Embodied Co<sub>2</sub>

[eq. kg/m²] A1-A3

N/A*

Performance Calculations

Guardian LamiGlass® Clear

LamiGlass Clear

Monolithic Not Laminated Monolithic Laminated Double Glazed Not Laminated Double Outer pane Laminated Double Inner pane Laminated Double Inner and Outer pane Laminated Triple Glazed Not Laminated Triple Outer pane Laminated Triple Inner pane Laminated Triple Inner and Outer pane Laminated

With the performance calculator, you can quickly calculate the performance data that matches your own glazing make-up

1 Pane
2 calculation format
3 Results

1 Outer Pane
2 Inner Pane
3 cavity
4 calculation format
5 Results

1 Outer Pane
2 Middle Pane
3 Inner Pane
4 cavity
5 calculation format
6 Results

Choose a glazing

Monolithic

Not available for this product
Double

Not available for this product
Triple

Not available for this product

Monolithic

Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 1 *

There is only one coating available

Coating on surface 2 *

There is only one coating available

Coating on surface 3 *

There is only one coating available

Coating on surface 4 *

There is only one coating available

Middle Pane

Base glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Coating on surface 3 * Coating on surface 5 *

There is only one coating available

Coating on surface 4 * Coating on surface 6 *

There is only one coating available

Inner Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 5 * Coating on surface 3 * Coating on surface 7 *

There is only one coating available

Coating on surface 6 * Coating on surface 4 * Coating on surface 8 *

There is only one coating available

Coating on surface 7 * Coating on surface 5 * Coating on surface 9 *

There is only one coating available

Coating on surface 8 * Coating on surface 6 * Coating on surface 10 *

There is only one coating available

Choose your calculation format

Standardization *

There is only one calculation standard available

Unit Display *

There is only one unit available for this calculation standard

Results

Calculated Values are in accordance with

Performance Values

For more details on the performance values displayed and Embodied CO2 please <a href="https://www.guardianglass.com/us/en/tools-and-resources/resources/performance-value-terms" target="_blank">click here</a>

Generate specifications

Generate BIM Objects

Launch another simulation

Need further technical support? Get in contact

There is something wrong with your selection

Performance Data is not currently available for this glass make-up, please launch a new simulation or go to Glass Analytics to configure performance data for your required glass make-up.

Launch another simulation

Submission failed due to a error, please try again

This tool is unavailable on this device

Access our website on a bigger device to be able to use our comparison tool.

LamiGlass Clear

Monolthic Laminated Acoustic

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 5/32" (4mm)

INTERLAYER: 0.015" (0.38mm) Saflex® R Clear PVB (IGDB), 0.381mm

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 5/32" (4mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

88 %

Reflectance outside (ρv)

8 %

Reflectance inside (ρv)

8 %

General Color Rendering Index (CRI)

97.8

Ultraviolet

Transmittance UV (τuv)

1 %

Solar Energy

Solar transmittance (τe)

74 %

Reflectance outside (ρe)

7 %

Reflectance inside (ρe)

7 %

Solar absorptance (αe)

18 %

Solar Heat Gain Coefficient (SHGC)

0.80

Shading Coefficient (sc)

0.92

Thermal properties

Winter night U-Value

5.691 W/m²·K

Summer day U-value

5.167 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.11

Embodied Co<sub>2</sub>

[eq. kg/m²] A1-A3

N/A*

Can’t find the glass make-up you are looking for? Go to Glass Analytics for more detailed configurations:

Launch Glass Analytics
