SunGuard® SNX 70+

SNX 70+ on CrystalGray

Add to Compare

Download Brochure Calculate Performance Generate BIM Files Generate specification Find a Supplier Request a sample Contact us

Download Brochure Generate BIM Files Generate specification Find a Supplier Request a sample Contact us

Enhanced neutrality*, even when tinted

Combining the neutrality of the SunGuard™ SNX 70+ low-E coating with the pleasing light grey aesthetic of Guardian CrystalGray™ tinted glass helps facades achieve a striking appearance alongside strong solar performance. This product combination offers 47% visible light transmission which finds equilibrium in the level of daylighting properties it offers to interior spaces. An enhanced solar heat gain coefficient of 0.23 helps to meet more stringent energy codes and improve occupant comfort by reducing excessive heat gain. The brilliant aesthetic combination of SNX 70+ and CrystalGray provides greater opportunity for harmonization across the exterior façade to continue to provide enhance neutrality, however you look at it.

*Within our North American SunGuard Triple Silver coatings portfolio.

Product information

Substrates

Guardian UltraClear 6-12 mm
Guardian CrystalGray 6-10 mm
Clear Float 6-12 mm

Applications

Storefronts
Windows
Skylights
Curtain walls

Manufacturing Options

Heat Strengthened
Edge deletion
TPF (Temporary Protective Film)
Heat Soaked
Must be Heat Treated
Bent
Tempered

Recommended Coating Positions

Surface 2 (double IGU)
Surface 3 (double IGU)

Maximum Size

130" x 204"

Edge Deletion

Glass Type

Low E
Triple Silver Coated Glass

Glass Functions

Aesthetics
Improved aesthetics
Reduced reflection
Solar control
Improved visibility
Thermal insulation

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Neutral
Light Gray

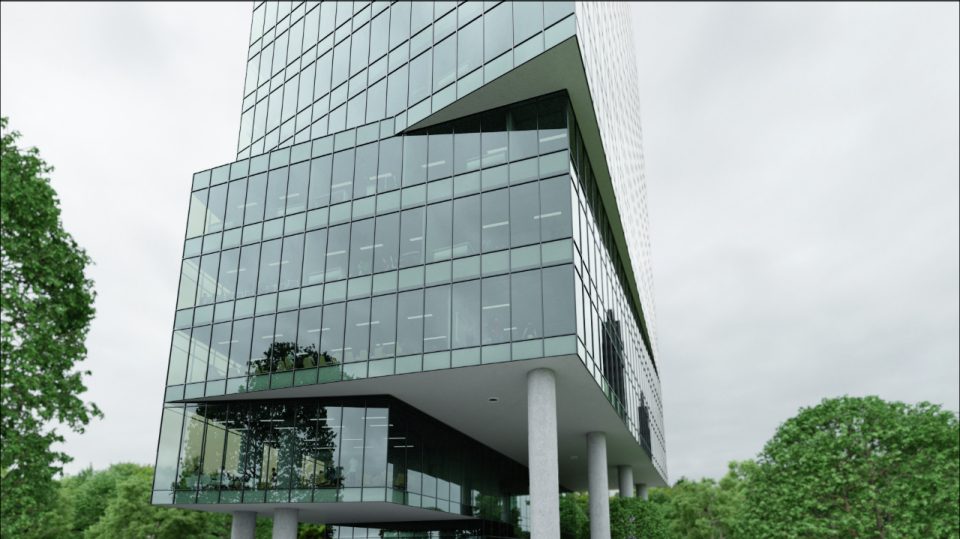

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian CrystalGray® Glass (North America) Glass, 1/4" (6mm) (2-SunGuard® SNX 70+ (North America))

GAP: 100% Air 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

47 %

Reflectance outside (ρv)

9 %

Reflectance inside (ρv)

14 %

General Color Rendering Index (CRI)

89.1

Ultraviolet

Transmittance UV (τuv)

7 %

Solar Energy

Solar transmittance (τe)

18 %

Reflectance outside (ρe)

21 %

Reflectance inside (ρe)

45 %

Solar absorptance (αe)

61 %

Solar Heat Gain Coefficient (SHGC)

0.23

Shading Coefficient (sc)

0.26

Thermal properties

Winter night U-Value

0.285 Btu/hr·ft²·F

Summer day U-value

0.264 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.03

Embodied Co2

[eq. kg/m²] A1-A3

34.31

Triple Glazed

GLASS: Guardian CrystalGray® Glass (North America) Glass, 1/4" (6mm) (2-SunGuard® SNX 70+ (North America))

GAP: 100% Air 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm)

GAP: 100% Air 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

42 %

Reflectance outside (ρv)

11 %

Reflectance inside (ρv)

20 %

General Color Rendering Index (CRI)

87.7

Ultraviolet

Transmittance UV (τuv)

6 %

Solar Energy

Solar transmittance (τe)

16 %

Reflectance outside (ρe)

22 %

Reflectance inside (ρe)

37 %

Solar absorptance (αe)

62 %

Solar Heat Gain Coefficient (SHGC)

0.21

Shading Coefficient (sc)

0.24

Thermal properties

Winter night U-Value

0.212 Btu/hr·ft²·F

Summer day U-value

0.213 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.04

Embodied Co2

[eq. kg/m²] A1-A3

49.80
