Bird1st Etch DV24
Bird1st Etch DV24
Glass that performs and protects
Bird1st Etch glass boasts a visible translucence for high style and visual appeal on façades and curtain walls. Bird1st Etch DV24 features directional 6mm dots, vertically oriented and spaced 2” x 4” apart. The pattern is tested by the American Bird Conservancy for proven effectiveness.
Etch DV24 is available in larger sizes – 102" x 130", 102" x 144" and 102" x 204" – expanding your aesthetic range.
Advanced technology for optimized protection
Guardian® Bird1st™ Etch pairs the visual deterrent of acid-etched glass on surface 1 with Guardian SunGuard® low-E coatings on surface 2. This allows you to expertly achieve energy performance and the bird-friendly standards your project requires – while also contributing to LEED Pilot Credit 55 qualification.
Bird1st Etch DV24
Threat Factor: 25

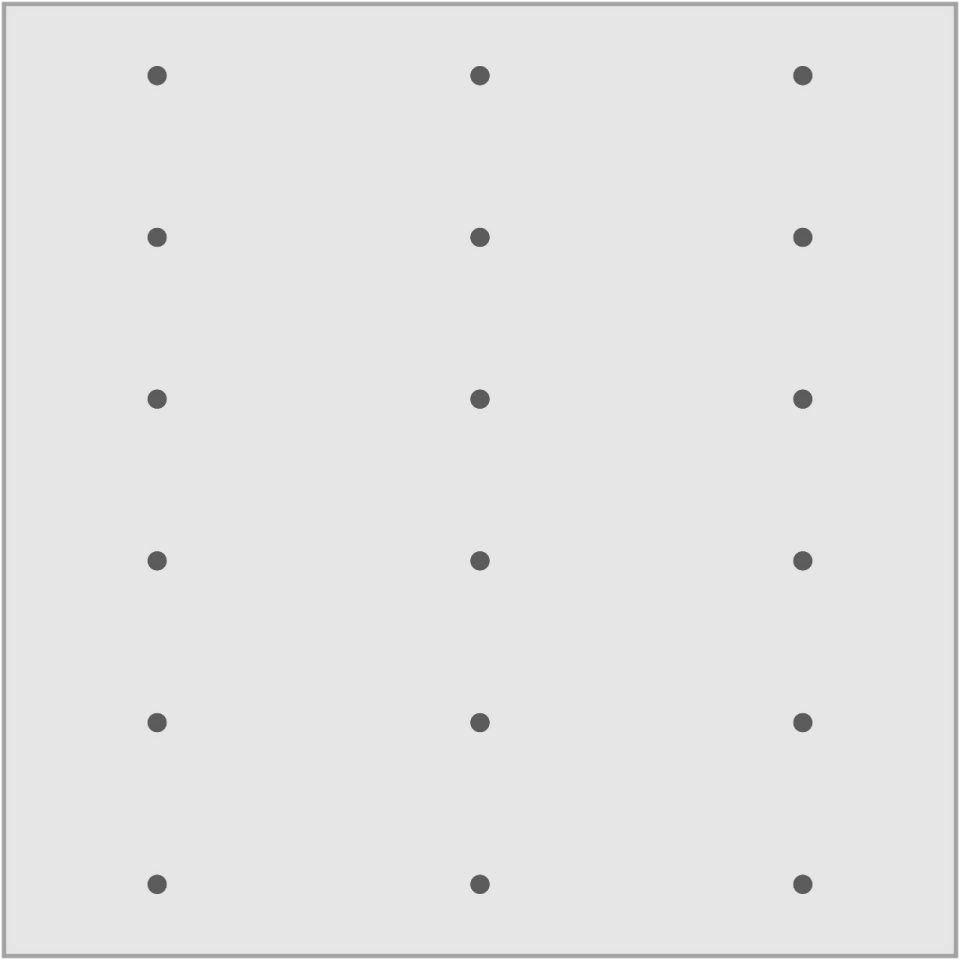

Directional 6mm dots, vertically oriented and spaced 2" x 4" apart
Bird1st Etch product details and availability

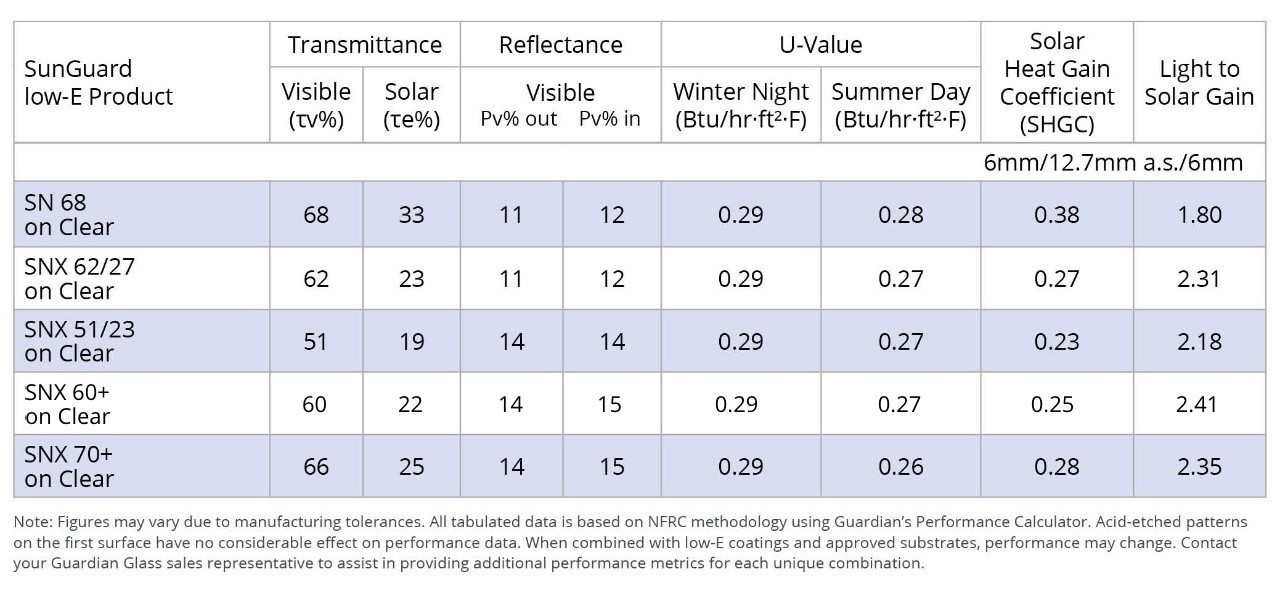

- Five SunGuard low-E coatings: SN 68, SNX 62/27, SNX 51/23, SN 54 and SNX 70+
- Four substrates: Guardian UltraClear™ low-iron glass, CrystalGray™ tinted glass, gray and standard clear glass
- 102″ x 130″, 102″ x 144″ and 102″ x 204″
- Thickness: 6mm, 8mm and 10mm
Product information
- No data available
- Windows
- Facades
- Curtain walls
- Doors
- Must be Heat Treated
- Surface 1 (Etched); Surface 2 (Low-E Coating)
- <102"x204" (2591x5182mm)
- No
- Bird-friendly glass
- Selective visibility
- Must be used in an Insulating Glass Unit
- Neutral
