Best-in-class* thermal insulating performance

Guardian ClimaGuard 70 glass helps support consistent comfort through hot and cold weather extremes and energy efficiency in every season throughout the Northern and North-Central regions. In addition to its insulating performance, this glass also transmits abundant light for a clean, neutral look that brightens interiors and opens views to the exterior.

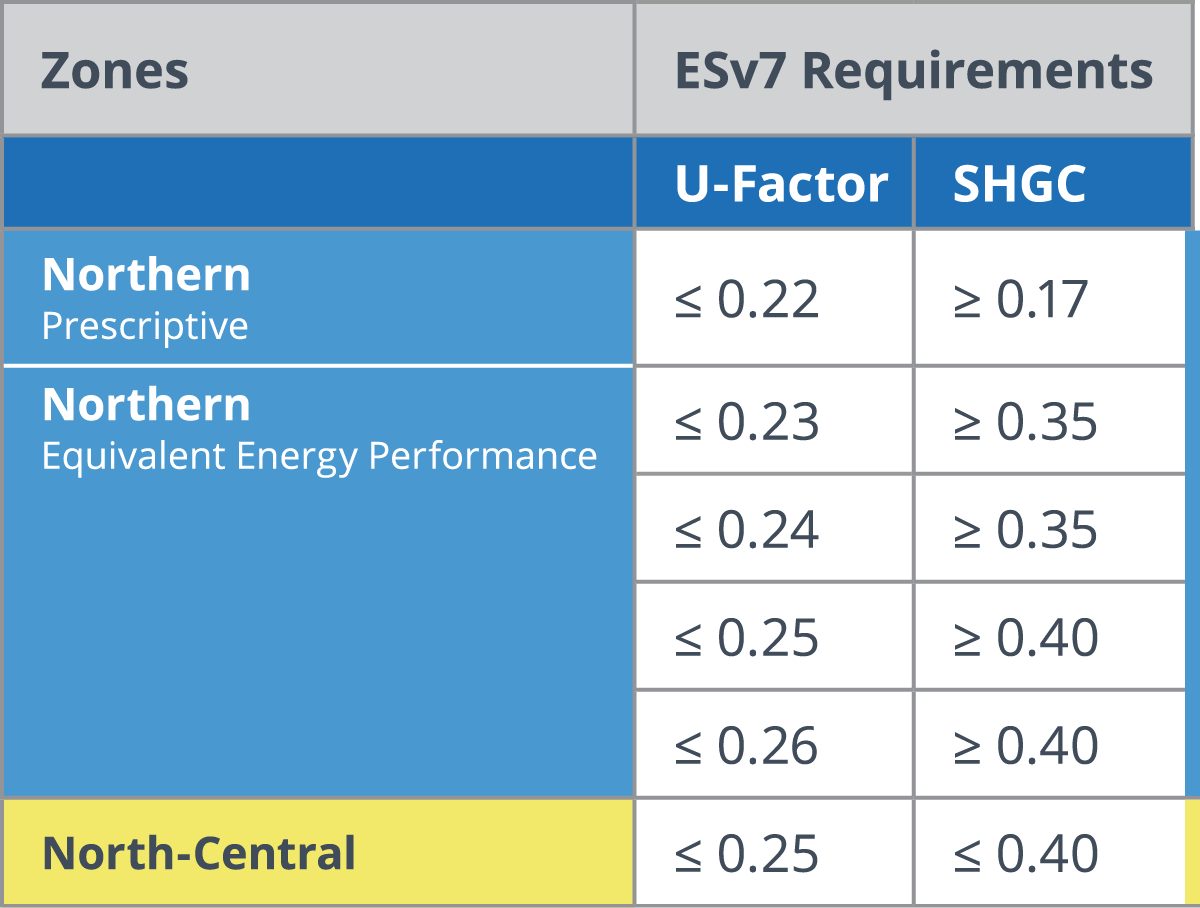

Thanks to its advanced performance, ClimaGuard 70 can help window manufacturers meet ENERGY STAR V7 requirements. In the North-Central U.S. region, this is accomplished by pairing ClimaGuard 70 low-E coating on surface #2 with ClimaGuard IS-20 low-E coating on surface #4 of a double-pane insulated glass unit (IGU). In the Northern region, ClimaGuard 70 can be part of a triple-pane IGU to meet these requirements.

*Among high-VLT products (as of this publication). High-VLT refers to products with visible light transmission between 66–80%.

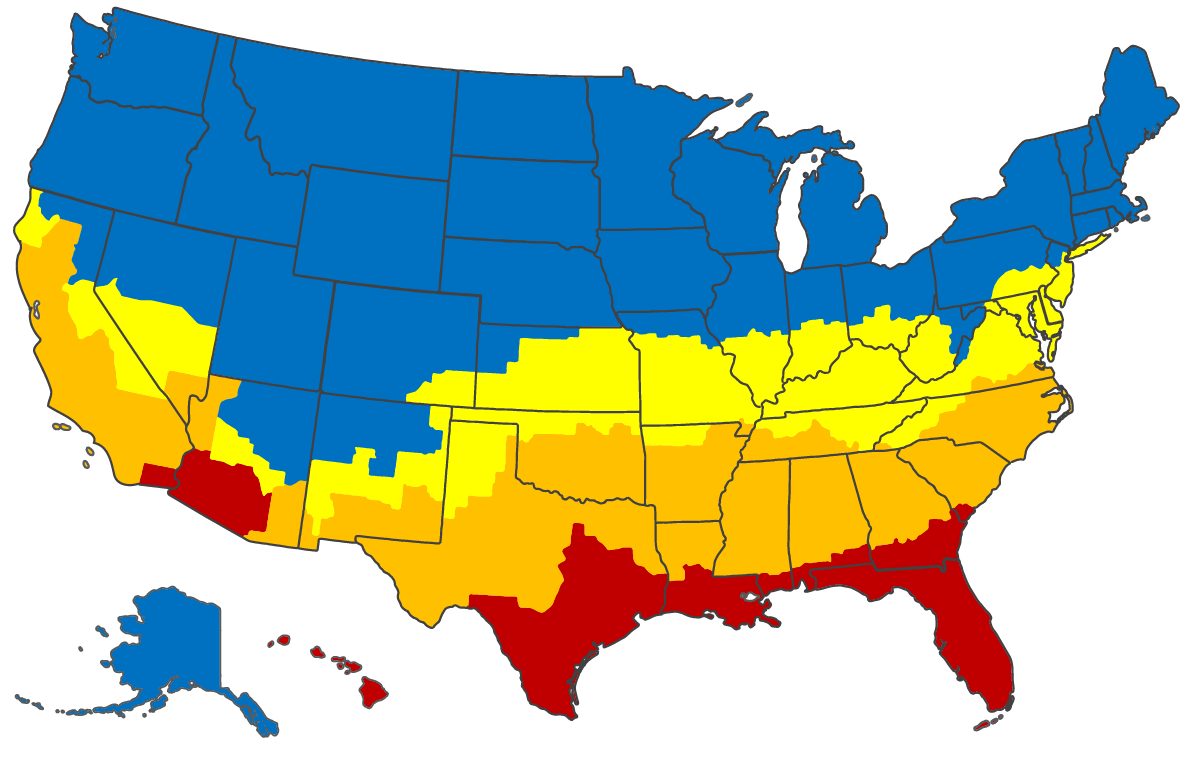

ENERGY STAR® prescribes a set of NFRC-certified U-Factor and solar heat gain (SHGC) rating levels for windows that meet its performance criteria across U.S. climate zones. It also defines a set of “equivalent enery performance” criteria specifically for windows that may be similarly certified for the Northern Climate Zone.

Center-of-glass performance calculated according to NFRC-100 based on an energy efficient frame with argon fill and warm edge spacer (IS 20 interior surface coating), and dual pane glass thickness of 3 mm and triple pane of 2.3 mm.

Product information

Substrates

Clear Float 2.3 mm (3/32") - 5 mm (13/64")

Applications

Windows
Doors

Manufacturing Options

Annealed
Laminated

Recommended Coating Positions

Surface 2 or 3 (double IGU)
Surface 2 & 5 (triple IGU)

Maximum Size

<96"x144"

Edge Deletion

Glass Type

Low E

Glass Functions

Solar control
Thermal insulation

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Neutral

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 70 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

69 %

Reflectance outside (ρv)

15 %

Reflectance inside (ρv)

16 %

General Color Rendering Index (CRI)

95.4

Ultraviolet

Transmittance UV (τuv)

20 %

Solar Energy

Solar transmittance (τe)

32 %

Reflectance outside (ρe)

42 %

Reflectance inside (ρe)

46 %

Solar absorptance (αe)

26 %

Solar Heat Gain Coefficient (SHGC)

0.35

Shading Coefficient (sc)

0.40

Thermal properties

Winter night U-Value

0.242 Btu/hr·ft²·F

Summer day U-value

0.213 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

1.98

Embodied Co2

[eq. kg/m²] A1-A3

19.72

Triple Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 70 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

63 %

Reflectance outside (ρv)

19 %

Reflectance inside (ρv)

22 %

General Color Rendering Index (CRI)

94.7

Ultraviolet

Transmittance UV (τuv)

17 %

Solar Energy

Solar transmittance (τe)

29 %

Reflectance outside (ρe)

44 %

Reflectance inside (ρe)

42 %

Solar absorptance (αe)

27 %

Solar Heat Gain Coefficient (SHGC)

0.32

Shading Coefficient (sc)

0.37

Thermal properties

Winter night U-Value

0.182 Btu/hr·ft²·F

Summer day U-value

0.176 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

1.96

Embodied Co2

[eq. kg/m²] A1-A3

27.93
