Double-silver coating that delivers triple-silver performance

Guardian ClimaGuard 55 glass offers a best-in-class solar heat gain coefficient (SHGC)¹, and provides powerful solar control to help reduce uncomfortable heat and glare without darkening rooms or compromising the view. It’s ideal for waterfront and mountain settings – and anywhere in between – throughout the Southern, South-Central and Northern regions.

Thanks to its advanced performance, ClimaGuard 55 glass can help window manufacturers meet and exceed ENERGY STAR® V7 requirements. Pair with ClimaGuard IS 20 fourth surface coating to further elevate performance.

1 Among mid-VLT products (as of this publication). Mid-VLT refers to products with visible light transmission between 55–65%.

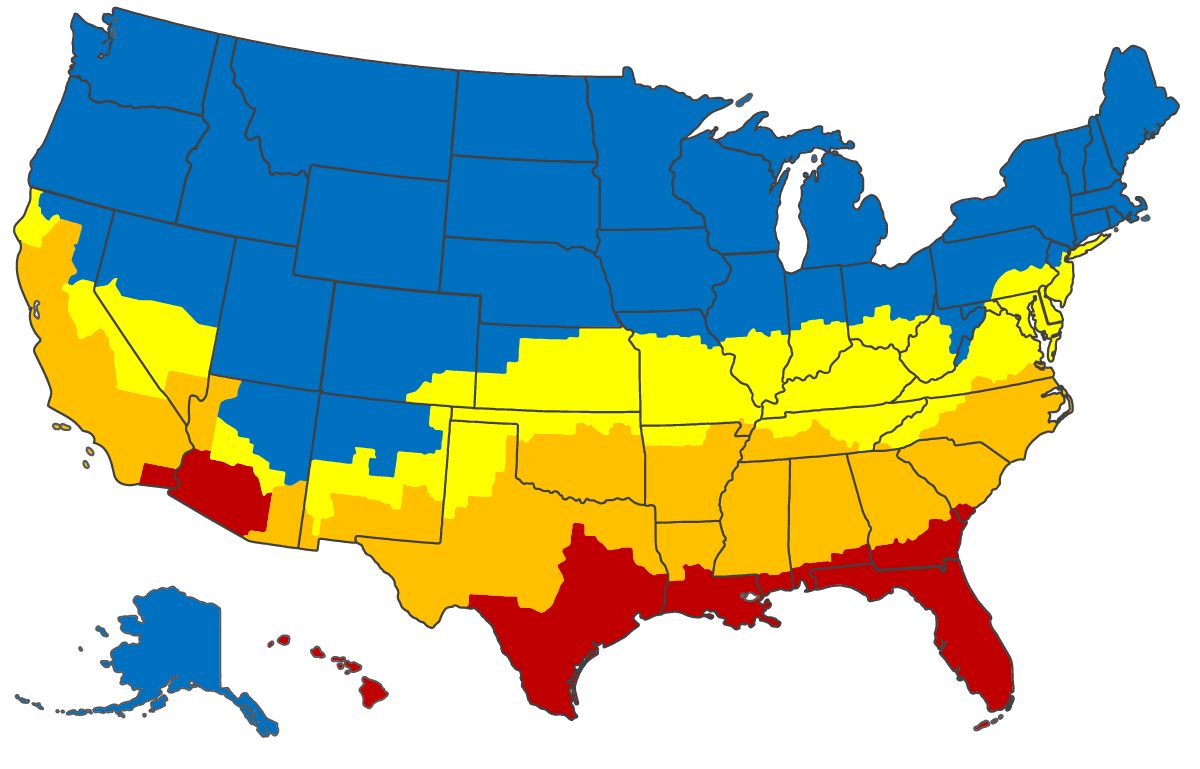

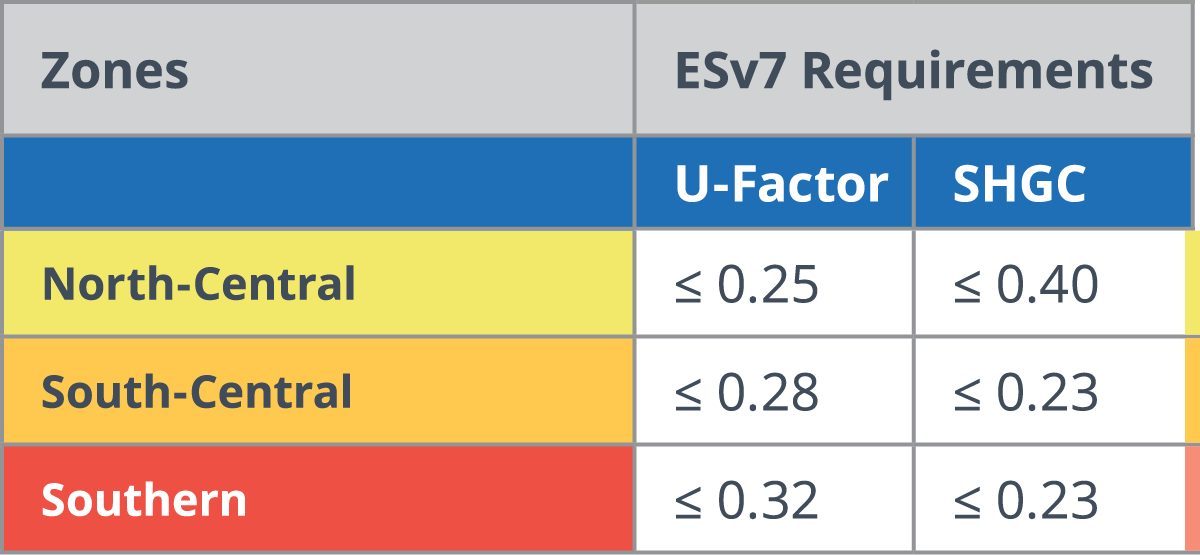

ENERGY STAR® prescribes a set of NFRC-certified U-Factor and solar heat gain (SHGC) rating levels for windows that meet its performance criteria across U.S. climate zones. It also defines a set of “equivalent enery performance” criteria specifically for windows that may be similarly certified for the Northern Climate Zone

Center-of-glass performance calculated according to NFRC-100 based on an energy efficient frame with argon fill and warm edge spacer (IS 20 interior surface coating), and dual pane glass thickness of 3 mm and triple pane of 2.3 mm.

Product information

Substrates

Clear Float 2.3 mm (3/32") - 5 mm (13/64")

Applications

Windows

Manufacturing Options

Edge deletion
Annealed
Dual Product (Annealed and Heat Treated versions)
Must be Heat Treated
Tempered

Recommended Coating Positions

Surface 2 (double IGU)

Maximum Size

<96"x144"

Edge Deletion

Glass Type

Double Silver Coated Glass
Low E

Glass Functions

Improved aesthetics
Reduced glare
Solar control

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Neutral

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

55 %

Reflectance outside (ρv)

15 %

Reflectance inside (ρv)

19 %

General Color Rendering Index (CRI)

94.8

Ultraviolet

Transmittance UV (τuv)

15 %

Solar Energy

Solar transmittance (τe)

23 %

Reflectance outside (ρe)

42 %

Reflectance inside (ρe)

49 %

Solar absorptance (αe)

35 %

Solar Heat Gain Coefficient (SHGC)

0.26

Shading Coefficient (sc)

0.29

Thermal properties

Winter night U-Value

0.243 Btu/hr·ft²·F

Summer day U-value

0.215 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.15

Embodied Co2

[eq. kg/m²] A1-A3

19.72

Triple Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

51 %

Reflectance outside (ρv)

18 %

Reflectance inside (ρv)

24 %

General Color Rendering Index (CRI)

94.0

Ultraviolet

Transmittance UV (τuv)

13 %

Solar Energy

Solar transmittance (τe)

21 %

Reflectance outside (ρe)

43 %

Reflectance inside (ρe)

45 %

Solar absorptance (αe)

37 %

Solar Heat Gain Coefficient (SHGC)

0.24

Shading Coefficient (sc)

0.27

Thermal properties

Winter night U-Value

0.183 Btu/hr·ft²·F

Summer day U-value

0.177 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.14

Embodied Co2

[eq. kg/m²] A1-A3

27.93

Performance Calculations

ClimaGuard

ClimaGuard 55

Monolithic Not Laminated Monolithic Laminated Double Glazed Not Laminated Double Outer pane Laminated Double Inner pane Laminated Double Inner and Outer pane Laminated Triple Glazed Not Laminated Triple Outer pane Laminated Triple Inner pane Laminated Triple Inner and Outer pane Laminated

With the performance calculator, you can quickly calculate the performance data that matches your own glazing make-up

1 Pane
2 calculation format
3 Results

1 Outer Pane
2 Inner Pane
3 cavity
4 calculation format
5 Results

1 Outer Pane
2 Middle Pane
3 Inner Pane
4 cavity
5 calculation format
6 Results

Choose a glazing

Monolithic

Not available for this product
Double

Not available for this product
Triple

Not available for this product

Monolithic

Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 1 *

There is only one coating available

Coating on surface 2 *

There is only one coating available

Coating on surface 3 *

There is only one coating available

Coating on surface 4 *

There is only one coating available

Middle Pane

Base glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Coating on surface 3 * Coating on surface 5 *

There is only one coating available

Coating on surface 4 * Coating on surface 6 *

There is only one coating available

Inner Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 5 * Coating on surface 3 * Coating on surface 7 *

There is only one coating available

Coating on surface 6 * Coating on surface 4 * Coating on surface 8 *

There is only one coating available

Coating on surface 7 * Coating on surface 5 * Coating on surface 9 *

There is only one coating available

Coating on surface 8 * Coating on surface 6 * Coating on surface 10 *

There is only one coating available

Choose your calculation format

Standardization *

There is only one calculation standard available

Unit Display *

There is only one unit available for this calculation standard

Results

Calculated Values are in accordance with

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Generate specifications

Generate BIM Objects

Launch another simulation

Need further technical support? Get in contact

There is something wrong with your selection

Performance Data is not currently available for this glass make-up, please launch a new simulation or go to Glass Analytics to configure performance data for your required glass make-up.

Launch another simulation

Submission failed due to a error, please try again

This tool is unavailable on this device

Access our website on a bigger device to be able to use our comparison tool.

ClimaGuard 55

Double Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

55 %

Reflectance outside (ρv)

15 %

Reflectance inside (ρv)

19 %

General Color Rendering Index (CRI)

94.8

Ultraviolet

Transmittance UV (τuv)

15 %

Solar Energy

Solar transmittance (τe)

23 %

Reflectance outside (ρe)

42 %

Reflectance inside (ρe)

49 %

Solar absorptance (αe)

35 %

Solar Heat Gain Coefficient (SHGC)

0.26

Shading Coefficient (sc)

0.29

Thermal properties

Winter night U-Value

0.243 Btu/hr·ft²·F

Summer day U-value

0.215 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.15

Embodied Co2

[eq. kg/m²] A1-A3

19.72

ClimaGuard 55

Triple Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

51 %

Reflectance outside (ρv)

18 %

Reflectance inside (ρv)

24 %

General Color Rendering Index (CRI)

94.0

Ultraviolet

Transmittance UV (τuv)

13 %

Solar Energy

Solar transmittance (τe)

21 %

Reflectance outside (ρe)

43 %

Reflectance inside (ρe)

45 %

Solar absorptance (αe)

37 %

Solar Heat Gain Coefficient (SHGC)

0.24

Shading Coefficient (sc)

0.27

Thermal properties

Winter night U-Value

0.183 Btu/hr·ft²·F

Summer day U-value

0.177 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.14

Embodied Co2

[eq. kg/m²] A1-A3

27.93

Can’t find the glass make-up you are looking for? Go to Glass Analytics for more detailed configurations:

Launch Glass Analytics
