Thinking outside the box enables complex curved façade on Hamburg’s concert hall

Hamburg, Germany | July 31, 2020

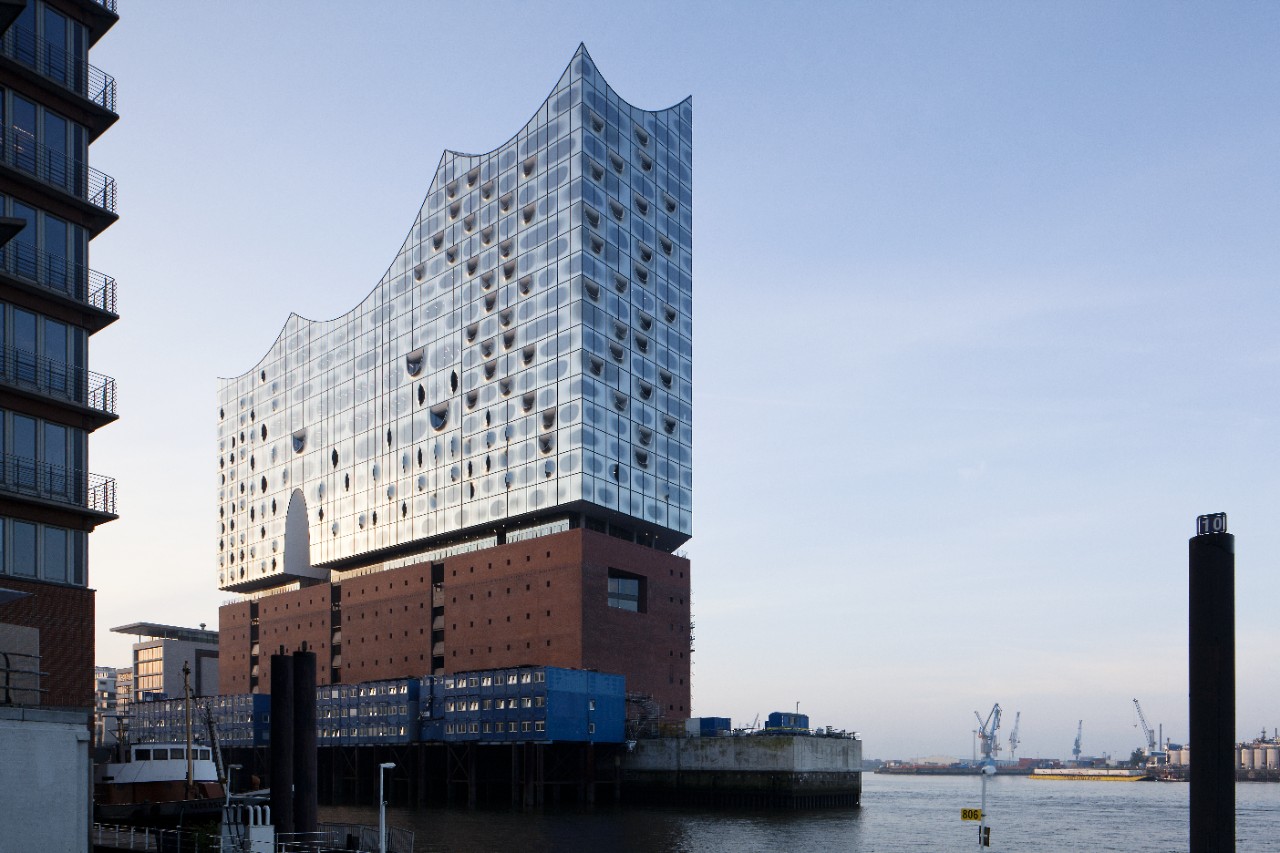

Located on the Elbe River, on the western tip of the HafenCity in Hamburg, Germany, the Elbphilharmonie is one of the largest and most acoustically advanced concert halls in the world and an outstanding example of modern architecture.

The Elbphilharmonie boasts stunning architecture in the mixed-used facility. Designed by Herzog & de Meuron, the building is not just a site for music; it is a fully-fledged residential and cultural complex. The 108-metre-high building, which officially opened in January 2017, accommodates a philharmonic hall, a chamber music hall, restaurants, bars, a terrace with panoramic views of Hamburg and the harbour, luxury apartments, a hotel, fitness centre, conference rooms and parking facilities.

The design of the new glass building resembles a hoisted sail or water wave. Extruded from the shape of the original Kaispeicher warehouse that supports it, the new glass building is identical in ground plan with the brick block of the older building, above which it rises. However, at the top and bottom, the new structure takes a very different design from the quiet, plain shape of the warehouse below.

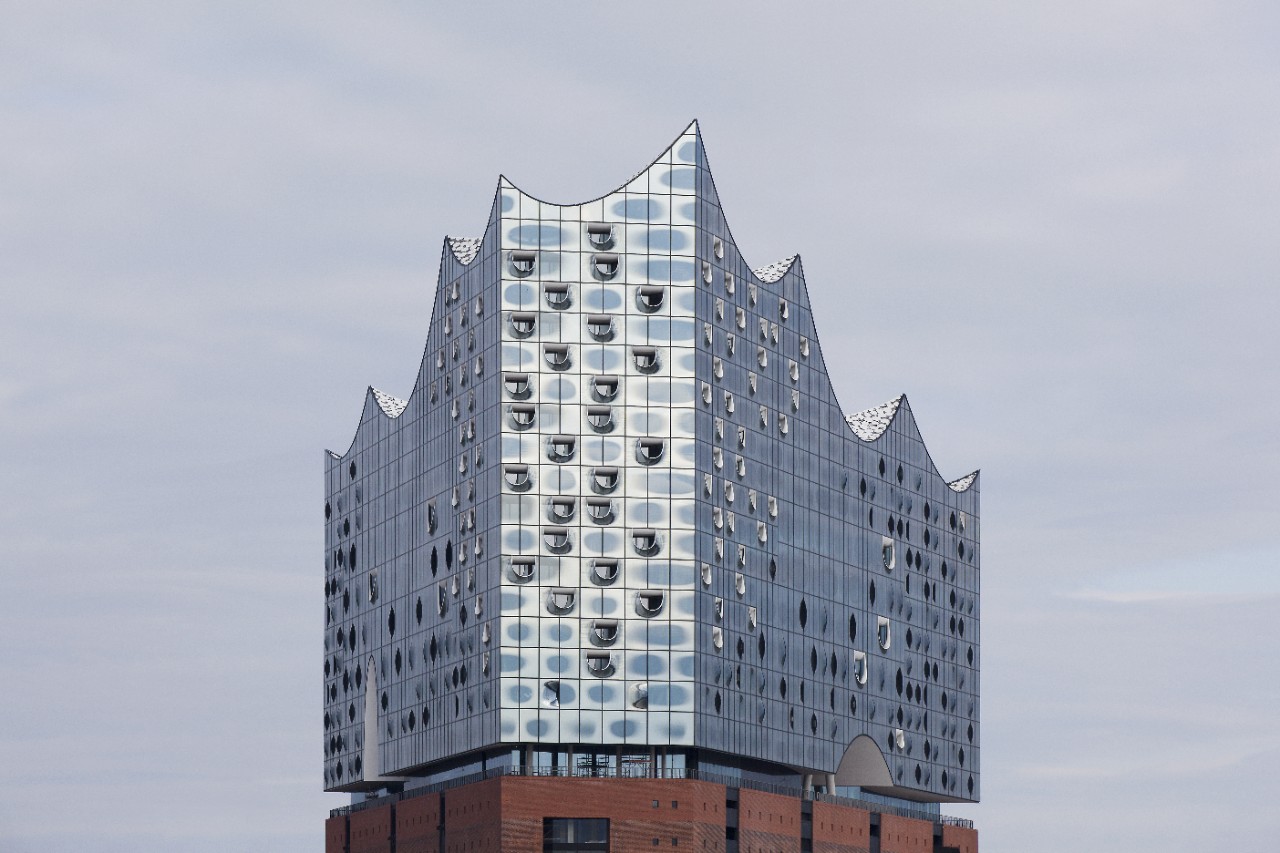

a concert hall building located in hamburg
project_solarlb52_clarity_de_hamburg_elbphilharmonie

Complex curved glass façade

The new building’s stunning 21,800m2 glass façade consists in part (approx. 5,000m2) of curved glass that transforms the structure into an enormous quartz crystal, whose appearance continually changes as it catches the reflections of the sky, the water and the city lights.

Josef Gartner GmbH was responsible for developing the glass façade. It is comprised of both flat and curved insulating glass units (IGUs) for the windows, as well as triple laminated curved single glazing for the loggias (covered exterior galleries).

One of the challenges was developing the curved glass elements of the façade. Up to that time, nobody has ever bent glass panes of that complex 3-D-geometry.

The next challenge was to maintain the functions of the different coatings of the glass during the manufacturing process. The glazing of the façade consists of a low-E coating, a solar control coating, chrome mirror dots and a ceramic silk-screen pattern. The solar control coating and the chrome dots were vital in achieving the customers’ performance requirements. Gartner was concerned that the high temperatures in the bending oven would destroy these layers or adversely affect their performance but the glass offered a remarkably high stability during the bending process

‘’We talked with many companies, but Guardian was the only one that could offer a base layer that would guarantee that the sun protection layer maintains its functions during the manufacturing process... In close collaboration with Guardian, we were able to achieve and maintain the customers’ requirements.‘’

Senior Project Manager Elbphilharmonie

Josef Gartner

As well as working with Gartner during the façade design phase, we also worked closely with the curved glass processor, SunGlass Srl. This ensured that the curved glass met the architect’s requirements in terms of performance and aesthetics (i.e. shapes of the curved glass, appearance and colour reflections).

Technical support services

In addition to supplying the high performance coated glass products, we provided technical support including thermal and spectrophotometric glazing calculation data, and thermal stress analyses. Using our experience and knowledge base, we were also able to provide suggestions and guidance on glass bending and ceramic printing of coated glass.

Guardian Glass

  • Guardian ExtraClear® float glass
  • Guardian ClimaGuard® DT thermal insulating glass
  • Guardian SunGuard® Solar Light Blue 52 solar control glass

Client

Freie und Hansestadt Hamburg, Germany; represented by ReGe Hamburg Project-Realisierungsgesellschaft mbH

Architect

Herzog & de Meuron

General Contractor

Adamanta Grundstücks-Vermietungsgesellschaft mbH & Co. with Hochtief Solutions AG

Façade

Josef Gartner GmbH

Glass Processors

  • SunGlass Srl for the bent glass and lamination of the bent glass;
  • BGT Bischoff Glastechnik GmbH & Co. KG for the cutting to size of the glass and the Basalt Grey ceramic silkscreen dots;
  • Interpane GmbH for the dots chrome-containing coating, the thermal insulation coating in the flat IGUs and the assembling of all final glass panes

Photography

Cordelia Ewerth

Would you like to learn more about curved glass, please feel free to get in touch with our experts
