SunGuard® SuperNeutral

SN Grey 40 T

SN Grey 40 T
 Download Brochure Calculate Performance Generate BIM Files Generate specification Find a Supplier
Hide the product comparison tool ( Products)
Show the product comparison tool ( Products)
Compare Product
Placeholder
Download Brochure Generate BIM Files Generate specification Find a Supplier

Add more products here

Light without the heat

Developed to meet the growing desire for neutral grey-colored architectural glazing, Guardian SunGuard® SuperNeutral (SN) Grey 40 T is a highly selective double silver coated solar control glass with a distinctive neutral grey appearance.

video-thumbnail

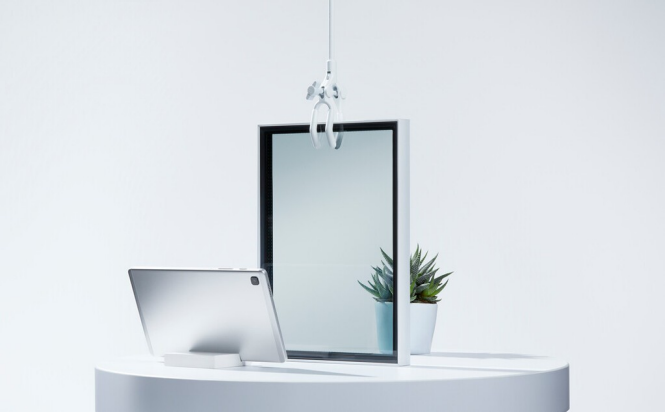

Outdoor Glass Color

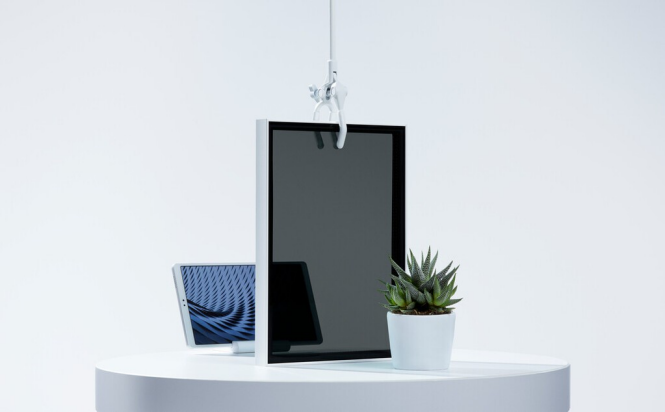

Indoor Glass Color

Product information

Substrates
  • Clear 4-12 mm
Applications
  • Storefronts
  • Windows
  • Skylights
  • Facades
  • Roof window
  • Curtain walls
Manufacturing Options
  • Heat Strengthened
  • Edgework
  • TPF (Temporary Protective Film)
  • Heat Soaked
  • Must be Heat Treated
  • Bent
  • Laminated
  • Tempered
Recommended Coating Positions
  • Surface 2 (double IGU)
Maximum Size
  • <3210x6000mm
Edge Deletion
  • Yes
Glass Type
  • Double Silver Coated Glass
Glass Functions
  • Reduced reflection
  • Solar control
  • Reduced glare
  • Selective visibility
  • Thermal insulation
Fabrication Options
  • Can be Laminated
  • Can be used Monolithic
  • Can be in an Insulating Glass Unit
Appearance
  • Neutral
  • Gray

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option
There is only one substrate available for this product

View

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

Original Image
Modified Image

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer
Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

  • Default Performance Data
  • Performance Calculations

  • Double Glazed

  • Triple Glazed

Double Glazed

pim/components/structure/pim-double

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 6mm (2-SunGuard® SN Grey 40 T (Middle East & Africa))

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 6mm

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light
Transmittance (τv)
36 %
Reflectance outside (ρv)
8 %
Reflectance inside (ρv)
13 %
General Color Rendering Index (CRI)
85.6
Ultraviolet
Transmittance UV (τuv)
12 %
Solar Energy
Solar transmittance (τe)
15 %
Reflectance outside (ρe)
23 %
Reflectance inside (ρe)
36 %
Solar absorptance (αe)
62 %
Solar Heat Gain Coefficient (SHGC)
0.21
Shading Coefficient (sc)
0.24
Thermal properties
Winter night U-Value
1.638 W/m²·K
Summer day U-value
1.578 W/m²·K
Light to Solar Gain
Light to Solar Gain (LSG)
1.68
Embodied Co<sub>2</sub>
[eq. kg/m²] A1-A3
39.35

Triple Glazed

pim/components/structure/pim-triple

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 6mm (2-SunGuard® SN Grey 40 T (Middle East & Africa))

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 4mm

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (Middle East & Africa) Glass, 6mm

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light
Transmittance (τv)
33 %
Reflectance outside (ρv)
9 %
Reflectance inside (ρv)
19 %
General Color Rendering Index (CRI)
84.7
Ultraviolet
Transmittance UV (τuv)
10 %
Solar Energy
Solar transmittance (τe)
14 %
Reflectance outside (ρe)
23 %
Reflectance inside (ρe)
33 %
Solar absorptance (αe)
63 %
Solar Heat Gain Coefficient (SHGC)
0.19
Shading Coefficient (sc)
0.22
Thermal properties
Winter night U-Value
1.234 W/m²·K
Summer day U-value
1.265 W/m²·K
Light to Solar Gain
Light to Solar Gain (LSG)
1.71
Embodied Co<sub>2</sub>
[eq. kg/m²] A1-A3
51.13
